Graphic Multi-Channel Permanent Ultrasonic Meters

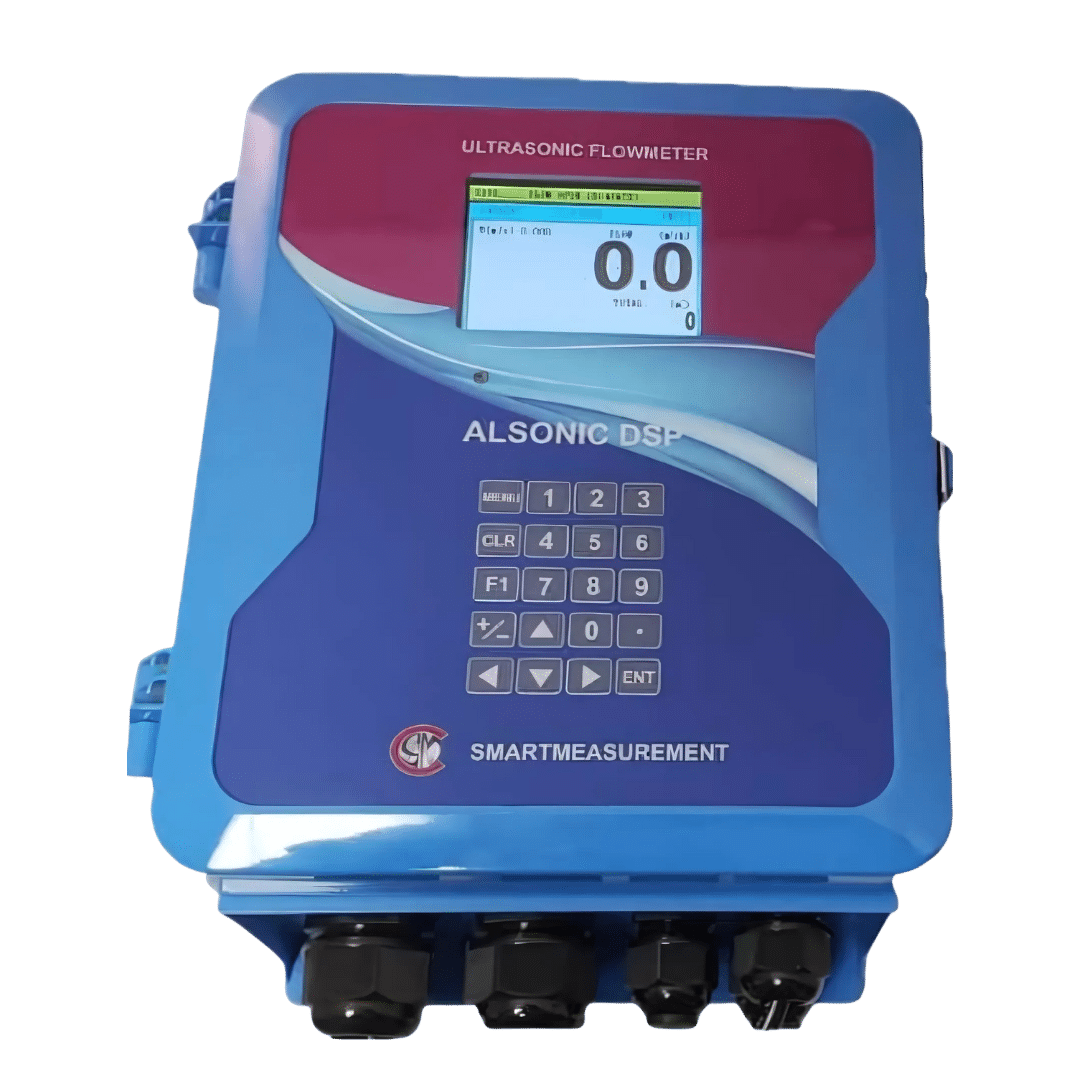

ALSONIC-DSP
- Color graphic LCD display (128 x 64) for flow, total & signal shape
- 4.0 Mbytes data logger with up to 200,000 data fields
- Velocities from ±0.03 to ±40 feet/sec (±0.01 to ± 12 m/s)
- Measures any liquids containing solids ≤ 30% suspended solids, including waste water
- Transducers available for pipe sizes from ½” to 240″ (15 to 6000 mm)
- Accuracies of ±1.0% of reading with single path and ±0.5% of reading with dual path
- Oscilloscope feature indicating three-dimensional analysis of the flow stream
- Touch-pad key function
- Patented Fine Time measurement technology
- Data logger function includes date, totalizer, and diagnostics
- Response time _ 1 second
| Measuring Principle: | Transit time differential |
| Pipe Sizes: | B Type : ½” ~ 4′ (15 mm ~ 100 mm)C Type : 2″ ~ 12″ (50 mm ~ 300 mm)D Type : 12″ ~ 40″ (200 mm ~ 1000 mm)E Type : 20″ ~ 240″ (500 mm ~ 6000 mm) |
| Pipe Material: | Cast Iron, Stainless Steel, Ductile Iron, Copper, PVC, PVDF, Aluminum, Asbestos, Fiberglass |
| Liner Material: | Tar Epoxy, Rubber, Mortar, Polypropylene, Polystryal, Polystyrene, Polyester, Ebonite, Polyethylene, Teflon |
| Accuracy: | ± 1% of reading with single path± 0.5% of reading with dual path |
| Repeatability: | ± 0.2% of reading |
| Engineering Units: | m³, Liter, US Gallon, Imperial Gallon, Million Gallon, Cubic Feet, US Barrels, Imperial Barrels, Oil Barrel |
| Flowrate: | 4 ½ digit |
| Totalizer: | 10-digit, Positive, Negative & Net values |
| Time Units: | Second, Minute, Hour, Day |
| Display: | Color Graphic LCD 128×64 with backlight |
| Other: | Oscilloscope function for diagnostics |
| Protection: | Display: NEMA 4 (IP65)Transducers: IP68 (Submersible) |
| Response Time: | Less than 1 second |
| Keypad: | 16-key touch pad |
| Ambient temperature: | -4 ~ 140 °F (-20 ~ 60 °C) |
| Fluid Velocity: | 0.03 ~ ±40 feet/sec (0.01 ~ ± 12 m/s) |
| Resolution: | 0.003 feet/sec (0.001 m/s) |
| Data logger: | 4.0 Mbytes,up to 200,000 bits of data |
| Weight: | 7.25 lbs (3.3 Kg) |
| Mounting: | wall mounting |
| Max. Cable Length: | 650′ (200 M) |
| Power Supply: | 90 ~ 260VAC 50/60 Hz12-24 VDC (compact type only; 10L & 10LX) |
| Communication: | RS-232 |
| Alarm: | two alarm oututs configurable for total, hi/low flow rate |
| Data storage: | Operation parameters and totalization data are stored by EEPROM for more than 10 years |
| Power Consumption: | Less than 20W |
| Dimensions: | See data sheet |
| Output: | two analog 4-20 mA |
Extra Images
Click image to enlarge
An optional dual-channel/dual-path model can be configured for a variety of uses. These specialized ultrasonic flow meters can be used for flow measurement in two different pipes, leak detection via measurements of two different locations on the same pipe, and dual-path measurement at one location for maximum accuracy.
