[ALMAGWP]

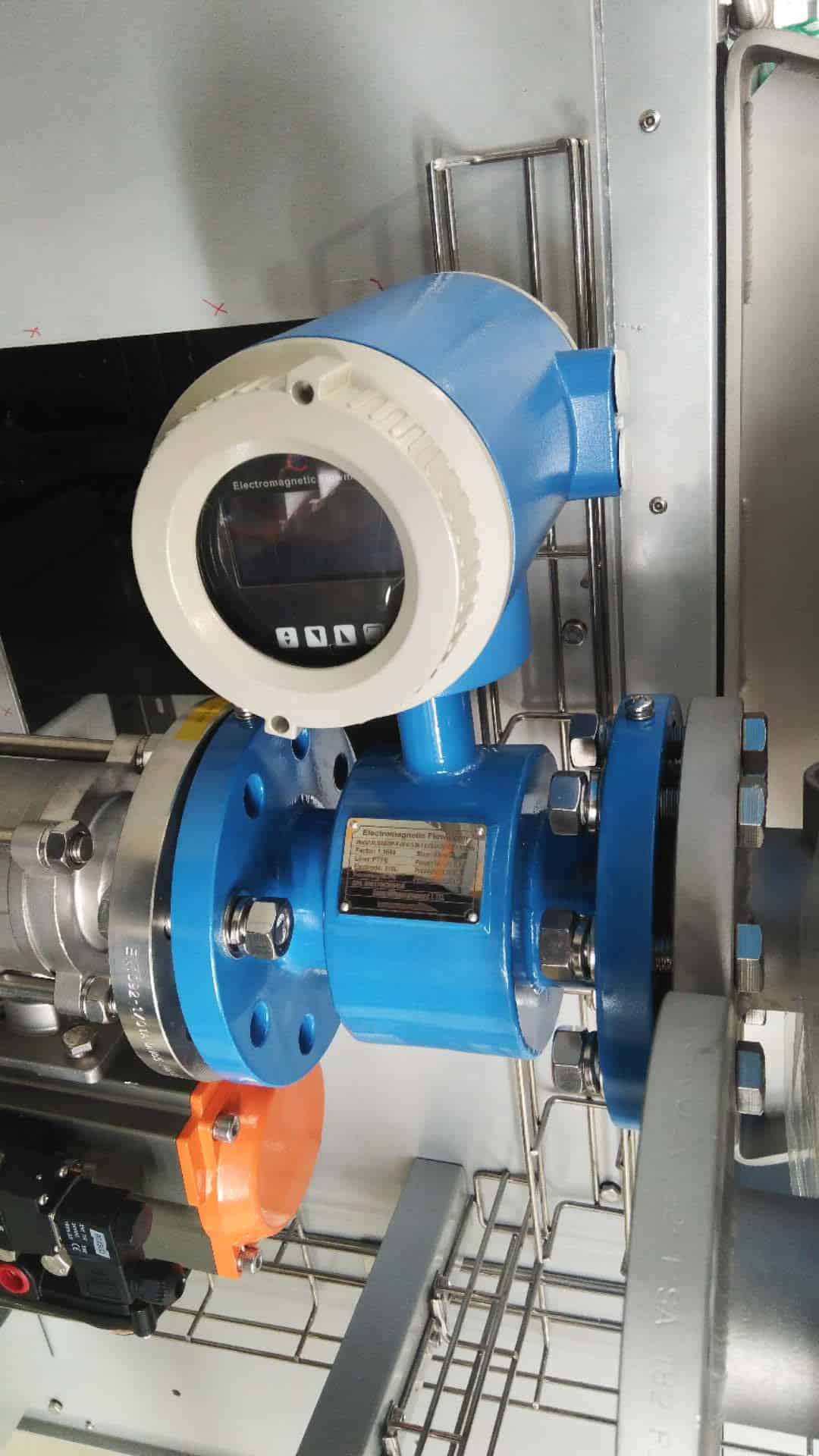

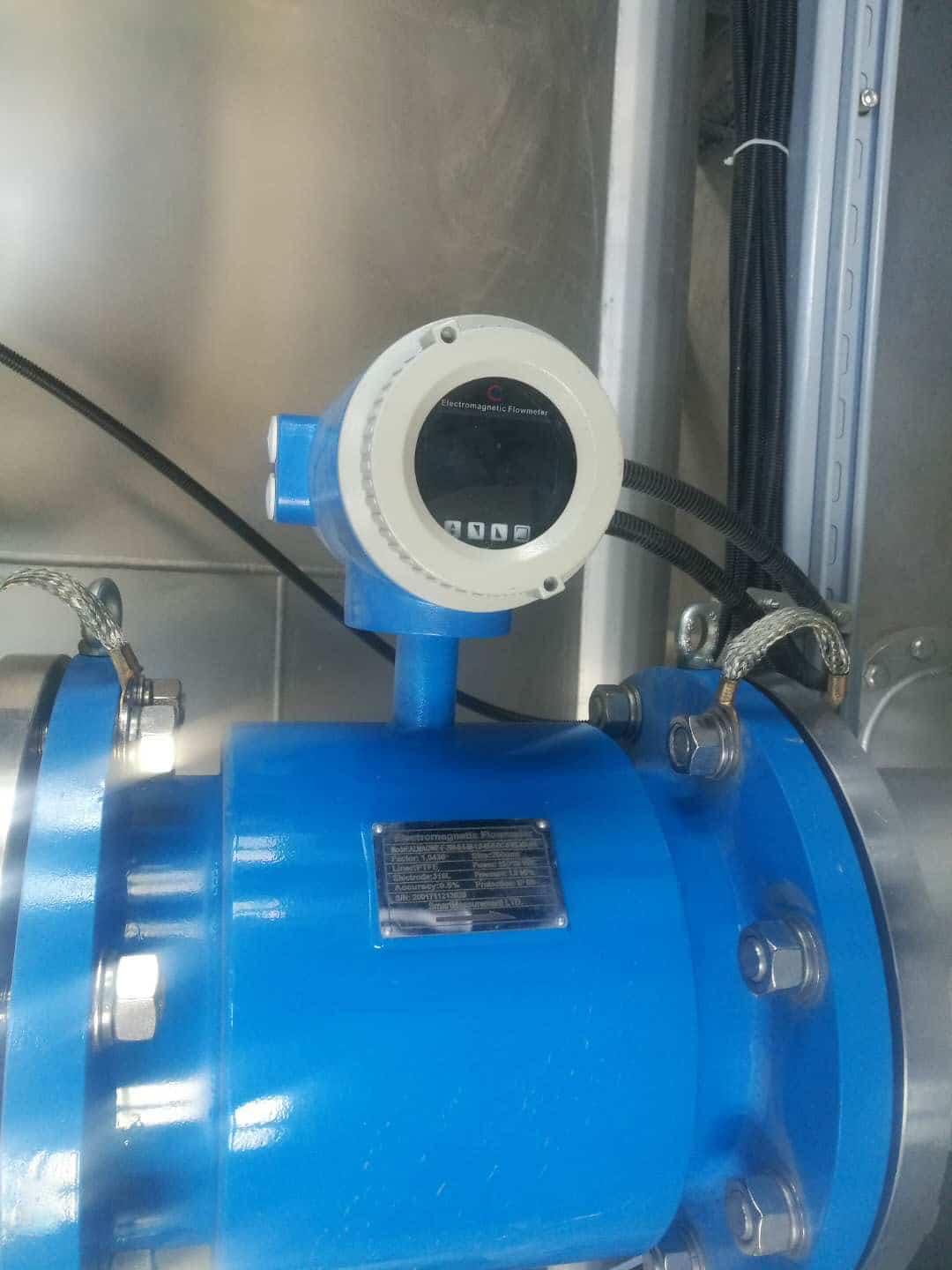

The ALMAGWP is an inline-type, general purpose electromagnetic flow meter with flanged connections. This versatile water flow meter is available for nominal pipe sizes ranging from ½” through 80″ and can detect fluid velocities ranging from less than 0.2 mps to 12 mps.
The ALMAGWP comes with an easy to read OLED display and is available with a wide variety of options, including AC or DC power, local or remote display, RS485, HART, and Profibus communications, as well as relay outputs. This broad array of options makes this general purpose mag meter an excellent choice for measuring conductive fluid flow rates in many applications and industries, including food and beverage, pulp and paper, and industrial process control.
Request a quote on an ALMAGWP general purpose electromagnetic flow meter, or contact SmartMeasurement to learn more.
Click image to enlarge
Features
Specifications
PDF Files
Additional Images
Resources
Features
- Available in â…œ”~80″ (DN10~DN2000) line sizes
- Wide fluid velocity range of 0-39 ft/sec (0-12 m/s) with excellent low-flow accuracy.
- HART, RS485/Modbus Profibus-DP communications available
- Easy-to-read OLED display; visible in low light environments and in direct sunlight, no backlighting necessary.
- Optional IP68 enclosure; environmental protection class (submersible).
- Various liner materials are available to satisfy nearly all industrial applications.
- Excellent accuracy; ±0.5% of reading standard, ±0.2% of reading optional
- Upright/reverse flowrate test function standard with every unit.
- NIST traceable calibration certificate
Specifications
Sizes: | â…œ”~80″ (DN10~DN2000) |
Measuring Range: | 0.32ft/s (0.1m/s) min. fluid velocity 39 ft/s (12 m/s) max. |
Temperature: | 14~140 °F (-10~60 °C) – Polyurethane / – -5~160 °F (-20~71 °C) – Neoprene / -40~356 °F (-40~180 °C) – PFA / -40~356 °F (-40~180 °C)- PTFE |
Accuracy: | ±0.5% of reading (Velocity>=0.5 m/s) / ±0.005 m/s (Velocity < 0.5 m/s) |
Liners: | Chloroprene Rubber (Neoprene), Polyurethane, Hard Rubber (Ebonite), PTFE, F46, PFA |
Material : | SS #304 flow tube, carbon steel flanges & coil housing (std), SS #304 flanges & coil housing (opt), SS# 316 flanges & coil housing (opt) |
Conductivity: | must be ≥ 5 μS/cm |
Electrode & Grounding: | Stainless Steel #316L / Nickel / Hastelloy C / Titanium / Tantalum |
Protection: | IP 65 (IP 68 remote type only) |
Options: | JIS 10K / JIS 20K / JIS 40K/ ANSI 300# / ANSI 600#/ DIN PN10 / PN16 / PN25 / PN40 |
Ambient temperature: | -5 ~ +130 °F (-20 ~ 55 °C) |
Process Connection: | Flanged |
Grounding Resistance : | < 10 Ω |
Outputs: | 4-20mA, pulse, (2) open collector switches or (2) Form C, (2) Form C, 5 Amp relay contacts (optional) |
Power requirements : | 110-240VAC or 16-36 VDC |
