[ALSONIC-PL]

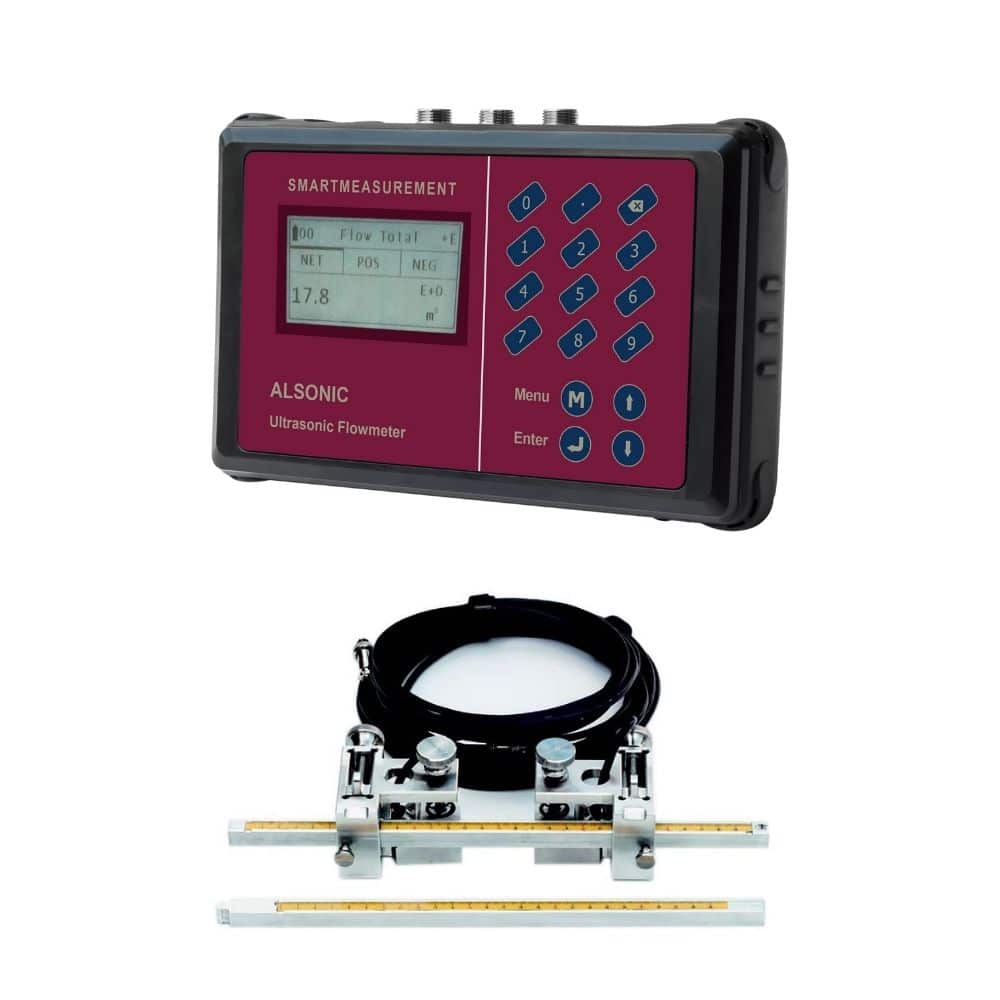

SmartMeasurement’s ALSONIC-PL is a portable transit-time ultrasonic flow and energy meter with clamp-on transducers for non-invasive liquid flow rate measurement. Our microprocessor based, user friendly, field programmable flow measurement technique creates no interruption of the process flow and has low installation costs.
Request a quote on an Alsonic-PL portable ultrasonic flow and energy meter for your application. Contact SmartMeasurement to learn more.
Click image to enlarge
Features
Specifications
PDF Files
Additional Images
Resources
Features
- 2 line LCD display with flow rate, totalizer & diagnostics
- Stores up 512 days of data w/recording interval of 1 to 3600 seconds
- Velocity range of ±0.98 ft/s~±32 ft/s (±0.1 ~±10 m/s)
- Pipe sizes from 1-48″ (25~1200) mm
- Bracket-type transducers for easy installation without mounting belt
- Data logger includes date, totalizer, signal condition & diagnostic code status
- Response time of less than 1 second
Specifications
| Flow Range: | ±0.98 ft/s~±32 ft/s (±0.1 ~±10 m/s) |
| Pipe Sizes: | Clamp-on: 1″~48″ (25mm~1200mm) |
| Temperature: | Ambient: -40°F~+140°F (-40℃~+60℃); Process -40°F~+176°F (-40°C~+80°C) and up to 230°F (130°C) optional |
| Fluid: | Clean liquids w/up 1% particles/bubbles |
| Accuracy: | ±1% of reading (0.3~5 m/s); ±5% of reading (0.1~10 m/s) |
| Transducer Cable: | Standard cable length: (16ft) 5m |
| Keypad: | Membrane type |
| Pipe Materials: | Carbon steel, stainless steel,PVC, copper, PVDF, polypropylene |
| Outputs: | Analog output: 4~20mA, 750 Max Ω, .Modbus/RS485 |
| SD card: | 16Gb for data-logger |
| Display: | 240*128 back-lit LCD |
| Measuring Interval: | User set 1 ~ 99999 sp seconds |
| Humidity: | Up to 99% RH, non-condensing |
| Transducer: | Encapsulated design, IP68 |
| Transmitter: | NEMA3S, IP54 |
| RTD: | less than 12VA |
| Power Supply: | Rechargeable lithium battery, 3000mAh (16 hours continuous operation) |
